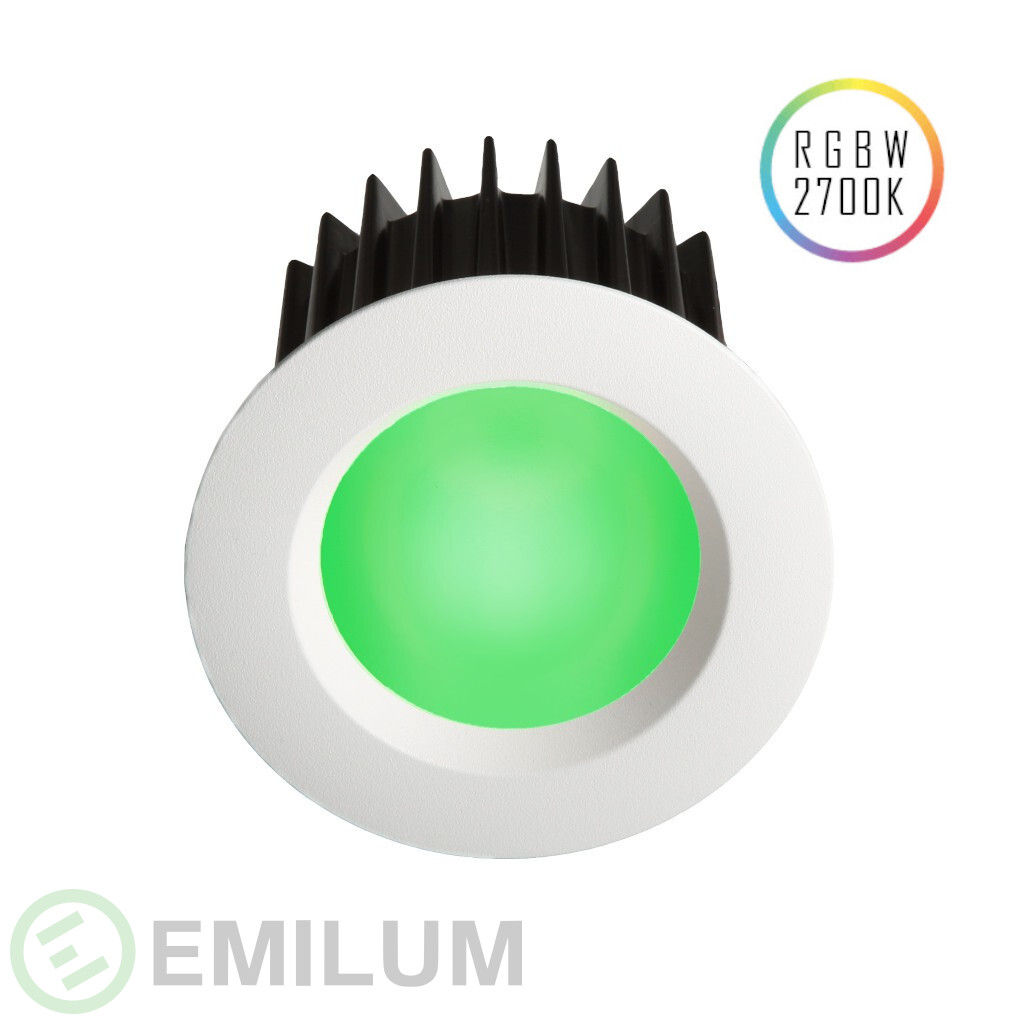

  • LED spot in RGBW with 2700K
  • high luminous flux for applications with particularly high luminance
  • very flat, supple front for a subtle look on the ceiling
  • Aluminum fronts in white or black
  • extremely efficient with  107lm / W
  • high quality of light with CRI90 min., typically CRI93
  • 24Vdc PWM dimmable
  • 60 ° beam angle
  • high quality reflector with diffuser disc for a subtle look
  • 68mm standard cutout



The LED spot was specially developed for areas  where high luminance  and color accents are required, this is the case  an impressive efficiency of 101lm / W with a typical CRI of 93.
The color LEDs create beautiful color accents in the smart home.
The special optics with reflector and diffuser result in a wonderful light image and round it off
Concept additionally.
Thanks to the reverse polarity protection, the spot cannot be destroyed even if the connection is incorrect.
The constant current regulation of the LEDs guarantees a constant lumen output even with a lower or higher voltage supply.


Specialty: RGBW version
Colour: White: RAL9016 matt or black: RAL9005 matt
Power: 8W
Nominal voltage: 24Vdc -5% + 20%
Color temperature: 2700K
Luminous flux: 810lm
Current: 330mA
Beam angle: 60 ° full angle
Installation dimension: 68mm
Diameter: 80mm
Installation depth: 70mm
