Pre-order now, delivery in September!

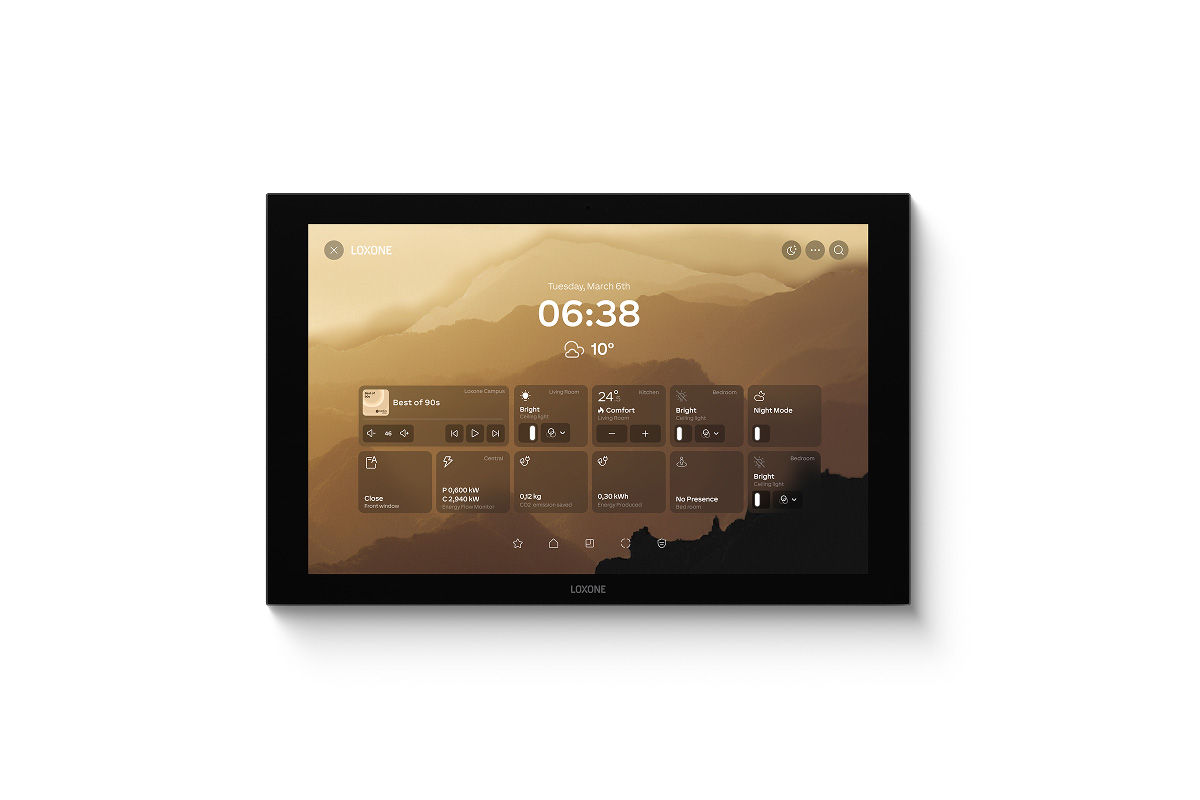

Wall-mounted tablets have always been a compromise. The LOXONE Wall Display 10” puts an end to such workarounds. It brings the familiar LOXONE user interface directly to your wall in a large, clear format. All important functions, from lighting and shading to room climate, audio, and system control, are available at a glance and can be controlled with just one touch. Designed for a central location in your home or building.
Features:
- Permanently installed wall display with the familiar LOXONE user interface
- Direct access to light, shading, climate, audio and more.
- Reliable, low-maintenance operation
- Flexible connection via LOXONE Tree Turbo or LAN via USB-C LAN adapter or Wi-Fi via Wi-Fi adapter set
Built to last a lifetime.
Regular updates improve the display, they don't make it age. Quality you'll enjoy for years to come. Made in Germany.
100% LOXONE, 0% complicated.
Control your entire building: lighting, shading, audio, energy, and more. No tablet workarounds. Maintenance-free.
Always there. For everyone.
Powered by electricity, networked and ready for use. Guests, employees, tenants and family members can easily control the building.
Admin mode
Set it up first. Adjust it later. The same simple principle. In Admin mode, you can make selected settings directly on the Wall Display without having to return to the LOXONE Config.
Easy to install.
A slim mounting frame is screwed to the wall and neatly guides the cables into place. The display is then hung in the frame and clicks into place – for a clean, professional look.
Technical data
- Supply voltage: 18–27 V DC
- Power consumption in standby mode: 2.85 W
- Typical power consumption: 4.8 W at 80% brightness
- Maximum power consumption: 13 W
- Interface: Loxone Tree Turbo
- Tree Turbo connection: via audio server or Miniserver Compact
- Optional LAN: via USB-C LAN adapter
- Optional Wi-Fi: via Wi-Fi adapter set
- Touch: capacitive touch detection
- Backlight: dimmable
- Ambient light sensor: integrated
- Permissible ambient temperature: -10 to 45 °C
- Permissible humidity: maximum 95% RH, non-condensing
- Protection rating: IP20
- Color: Anthracite, RAL 9005
- Surface: matte
- Dimensions: 250 × 160 × 16.9 mm
- Net weight: 760 g
- Mounting type: fixed surface mounting
Scope of delivery:
1x Wall Display 10"
1x mounting frame
1x Folder
