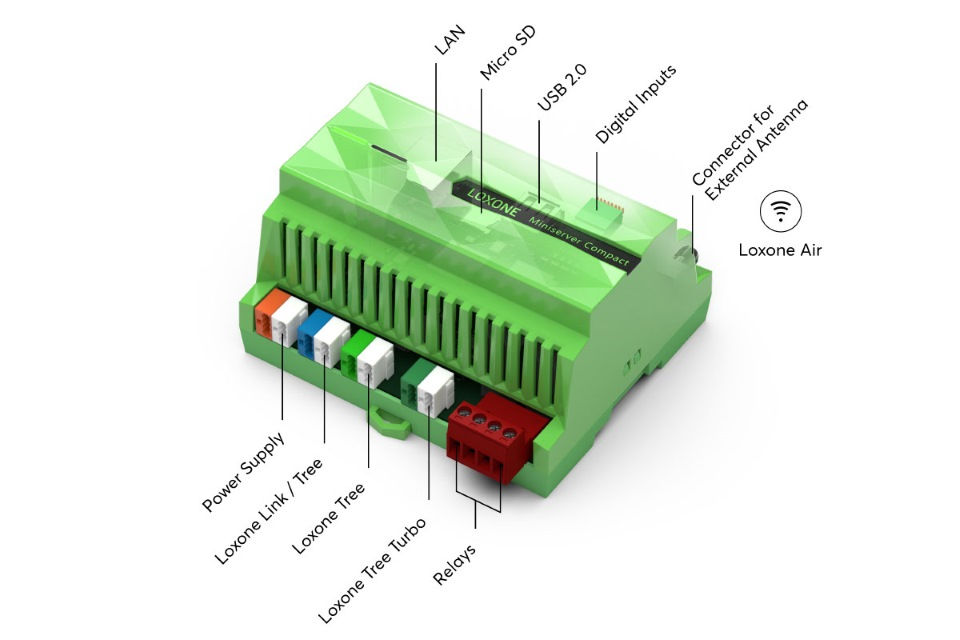

The Loxone Miniserver Compact was specially developed for smaller distribution boxes. In order to use up as little space as possible in a hotel room, for example, the Miniserver Compact was developed because it already has the Loxone Air, Tree and Tree Turbo technology installed! The software of the audio server was also integrated, making it a multimedia all-rounder.



Can be ordered now, delivery from January 2023



  • 24VDC power supply
  • Loxone Link or Tree (switchable in the software) with up to 30 Extensions or 50 Tree devices
  • Loxone Tree interface (max. 50 Tree devices)
  • Loxone Tree Turbo (performance interface for audio)
  • LAN interface
  • USB interface
  • SD card
  • Space required: 6 pitch units
  • 4 digital inputs
  • 2x 16A relay outputs (potential-free)



scope of delivery

1x Miniserver Compact
1x folder
1x Loxone sticker
1x 120 ohm resistor
1x SD card (in the slot)
1x IDC tool



You might also be interested in
Miniserver Go

Dimmer Extension

Relay Extension

Air Base Extension
Loxone Tree products



Miniserver Compact

SKU: 100512
€594.00Price
